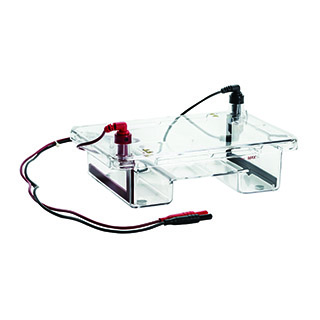

Horizontal gel electrophoresis system, GES with variable tray selection of 10 x 15cm, 7 x 15cm, and 15 x 15 cm is the ideal submarine cell made by injection mode technology for DNA and RNA separation. GES systems can run up to 40 samples at a time. Unique Dams-claw design guarantees no leakage while gel casting. Quick assembling L type electrode is easily to be cleaned and replaced.
- Specification
- Features
- Ordering
- Download
| Fluorescent ruler |
Yes |
| Tray size (mm) |
100 x 150 / 70 x 150 / 150 x 150 |
| Electrode |
Gold-plated electrode with platinum wire |
| Leakage free gel casting |
Dams-claw* |
| Number of teeth |
15, 20 |
| Thickness of comb (mm) |
1.0 |
| Sample throughput |
Max. 40 |
| Buffer Volume (ml) |
650 to 1000 |
| Cable |
Safety black & red cable |
| Physical dimensions (mm) |
270 x 175 x 100 (W x D x H) |
| Weight (kg) |
2 |
| Certification |
CE |
| Recommended Power Supply |
ELITE / ELITE U series |
The spec is subject to change without prior notice.
*Patent no.:203646/ US6,576,109 B1 / 2000-006995 / 20017041.4
*Dams-claw is the patent of Wealtec Bioscience |
|
Features
Unique anti-leakage design for gel casting system
Fluorescence ruler printed on the sample tray
UV transparent sample tray
Ordering Information
| Catalog Number |
Description |
| 1011002 |
GES Cell complete system, GES-cell accompanies with a 10 x 15cm tray, one 15 x 1.0mm teeth and one 20 x 1.0mm teeth fixed- height comb |
| 1011003 |
GES Cell complete system, GES-cell accompanies with a 7 x 15cm tray, one 15 x 1.0mm teeth and one 20 x 1.0mm teeth fixed-height comb. |
| 1011004 |
GES Cell complete system, GES-cell accompanies with a 15 x 15cm tray, one 15 x 1.0mm teeth and one 20 x 1.0mm teeth fixed-height comb |
Download
| Flyer |
| GES horizontal gel electrophoresis tank |
 |
|
|
 |
Accessories |
|
|
|
|
| |
 |
| UV-transparent tray 7 x 15 cm |
|
UV-transparent tray 7 x 15 cm, for GES Cell. |
|
|
|
|
| |
 |
| UV-transparent tray 10 x 15 cm |
|
UV-transparent tray 10 x 15 cm, for GES Cell. |
|
|
|
|
| |
 |
| UV-transparent tray 15 x 15 cm |
|
UV-transparent tray 15 x 15 cm, for GES Cell
|
|
|
|
|
| |
 |
| Comb 15-teeth 0.75mm (GES) |
|
15 teeth fixed height comb, 0.75 mm thick, for GES Cell.
|
|
|
|
|
| |
 |
| Comb 15-teeth 1.0mm (GES) |
|
15 teeth fixed height comb, 1.0 mm thick, for GES Cell.
|
|
|
|
|
| |
 |
| Comb 15-teeth 1.5mm (GES) |
|
15 teeth fixed height comb, 1.5 mm thick, for GES Cell.
|
|
|
|
|
| |
 |
| Comb 20-teeth 0.75mm (GES) |
|
20 teeth fixed height comb, 0.75 mm thick, for GES Cell.
|
|
|
|
|
| |
 |
| Comb 20-teeth 1.0mm (GES) |
|
20 teeth fixed height comb, 1.0 mm thick, for GES Cell.
|
|
|
|
|
| |
 |
| Comb 20-teeth 1.5mm (GES) |
|
20 teeth fixed height comb, 1.5 mm thick, for GES Cell.
|
|
|
|
|
|
|
|
|
