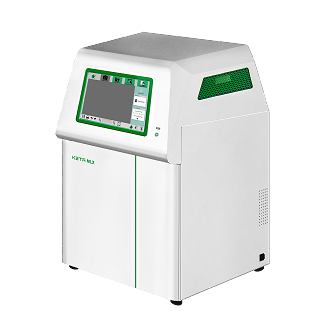

The KETA GLX is a research grade computer controlled gel documentation system ideal for molecular biology laboratory. Comprise of high resolution 16bit B/W 5.0M pixels RT camera, computer controlled lens, five position motorized filter wheel coupled with a high transparent amber filter, 2X close-up lens. Large visual area, dual high intensity U7 LED Epi source, low background 302nm UV transilluminator, UV radiation safety interlock darkroom, 30 seconds exposure time Max. Inbuilt 24V power supply for BW-20 blue/white light transilluminator. Magic 1D software package as standard, preset 15 minutes energy save mode will be active automatically while operator do not touch any key. Default optimum image capture method by type of samples.
|
Filter
|
Dye/stain
|
|
WK 101
|
EtBr, SYBR Green I / II, SYBR Gold, SYPRO Red / Ruby / Orange
|
|
WK 102
|
SYBR Green I / II, SYBR Gold, SYBR Safe, wtGFP
|
|
WK 103
|
EtBr, SYBR Green I / II, SYBR Gold, SYPRO Red / Ruby / Orange, Fluorescein / FITC
|
|
WK 104
|
SYPRO Ruby, EtBr
|
|
WK 105
|
SYPRO Red, Radiant Red, Texas Red
|
- Specification
- Features
- Ordering
- Download
| CCD depth |
16 bit |
| Operating temperature |
0 ~ 60°C |
| Chip size |
2/3" |
| Resolution |
5.0M pixels |
| Cooling |
Air, R-T |
| Five position filter wheel |
Standard |
| Filter size |
55mm |
| Motorized Lens |
11.5 - 69mm, f1.4 |
| Epi-light source |
Dual U7 LED |
| UV transilluminator |
MD-25K |
| Magic 1D Software |
Standard |
| OS system |
Windows 10 |
| Filter |
WK 101 |
| Physical dimensions |
460 x 450 x 725mm (W x D x H) |
| Weight |
42.2kg |
| Power |
100-240V, 50-60Hz |
|
Features
BW-20 Blue/White light transilluminator for Bio- safe application
GCM function provide user get good shot anytime
Energy save mode keep long life time of camera Comply file format PCX, TGA, DFN(GEL), PNG, IMG, TIFF, BMP, JPG, GIF, etc.
Ordering information
| Catalog Number |
Description |
| 1155008 |
KETA GLX gel documentation system complete with in-build SBC, 12” touch panel LCD,5.0 M pixels camera five position filter wheel, dual U7 Epi white light LED, MD-25K 302nm transilluminator, WK 101 emission filter & Magic 1D software package single user key, 100-240V, 50-60Hz. |
|
|
 |
Accessories |
|
|
|
|
| |
 |
| Magic 1D |
|
This software is an integrated image capture module with powerful data analysis capabilities. The software covers 1-D gel molecular weight and mass determination, colony counting, microtiter plate analysis and spot densitometry calculation, combined with traceable image enhancement function in simple steps for reliable results. With the 3D color display, X-axis comparison and smiling gels correction feature provides the researcher with visual clarity for enhanced comparison in data analysis.
|
|
|
|
|
| |
 |
| MD-25K UV Transilluminator |
|
MD-25K UV transilluminator equipped with six long life 8W UV tubes with specific 302nm wavelength and 75% adjustable intensity. A 25 X 25cm low background IR cut-off filter embedded into stainless steel frame provides excellent UV radiation for gel documentation and fluorescence detection when integrated with the KETA imaging system. On/off and high/low intensity are controlled by the Magic 1D software.
|
|
|
|
|
| |
 |
| WK 101 550~675 nm, 55mm amber filter for KETA Series |
|
WK 101 550~675 nm, 55mm amber filter for KETA Series.
|
|
|
|
|
| |
 |
| WK 102 500~550 nm, 55mm SYBR Green filter for KETA Series |
|
WK 102 500~550 nm, 55mm SYBR Green filter for KETA Series.
|
|
|
|
|
| |
 |
| WK 103 510~650 nm, 55mm SYPRO Ruby filter for KETA Series |
|
WK 103 510~650 nm, 55mm SYPRO Ruby filter for KETA Series.
|
|
|
|
|
| |
 |
| WK 104 HQ 610/75, 55mm filter for KETA Series |
|
WK 104 HQ 610/75, 55mm filter for KETA Series.
|
|
|
|
|
| |
 |
| WK 105 D 630/60, 55mm filter 55 for KETA Series |
|
WK 105 D 630/60, 55mm filter 55 for KETA Series.
|
|
|
|
|
| |
 |
| UV/White light converter plate |
|
Place this converter plate on top of the UV transilluminator to convert from UV illumination to white light illumination for visible wavelength imaging without damaging target samples.
|
|
|
|
|
| |
 |
| BW-20 |
|
Place this converter plate on top of the UV transilluminator to convert from UV to blue light. its emission light is specifically intensified at 490 nm blue light for SYBR Green and wtGFP detection.
|
|
|
|
|
| |
 |
| Digital Thermal Printer |
|
Digital Thermal Printer for Dolphin / KETA Image Systems.
|
|
|
|
|
|
|
|
|
