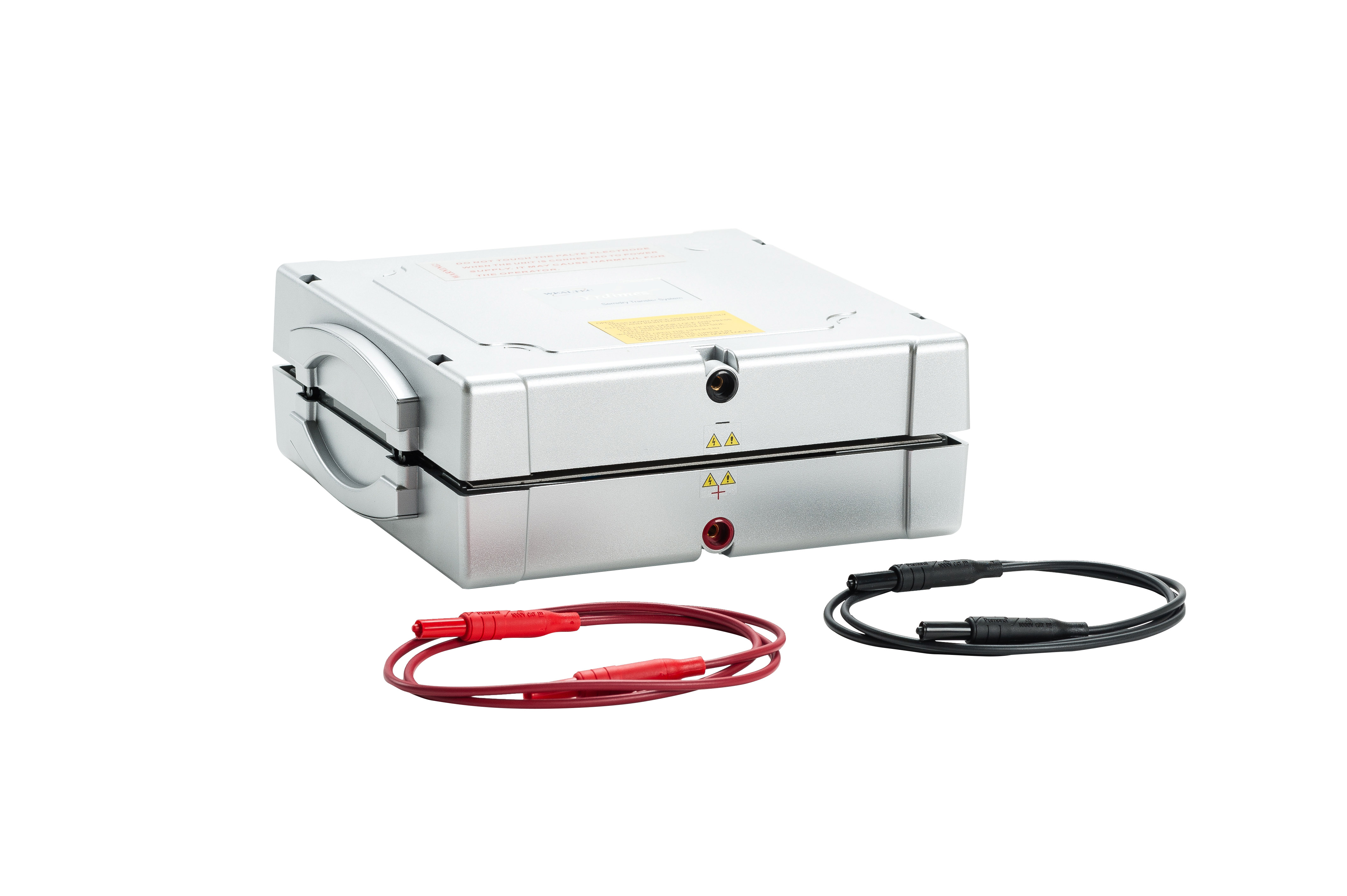

Yrdimes, fast blotting device for agarose and protein gel, comprises with unique bi-directional force* design which use eight pieces spring to get most even force during the blotting process. Completed with stainless steel and platinum plated titanium plate electrodes, as worked with ELITE 200 power supply, Yrdimes provides stable electric field allowing a single layer of four side-by-side mini gels or a maximum up to 18 x 20cm gel or capable of transferring up to three stacking layers of polyacrylamide gels. It’s time saving for single or multiple blotting. Applied with proper buffer, transfer can be completed within 7 minutes.
*Bi-directional force is the patent of Wealtec Bioscience.
- Specification
- Features
- Ordering
- Download
| Gel size |
Max. 4 pieces 100 x 80mm |
| Electrode size |
205 x 205 mm with 1mm thickness |
| Transfer area |
180 x 200mm |
| Anode |
Platinum plated on titanium plate |
| Cathode |
316 stainless steel plate |
| Minimum transfer time |
7 minutes |
| Force apply |
Simultaneously up & down force by 8 springs* |
| Cable |
High efficiency black & red cable |
| Physical dimensions |
225 x 225 x 85mm (W x D x H) |
| Weight |
1.2kg |
| Operating environment |
Temp:0-40°C, Humidity: 10-90% R.H. Non-condensing |
| Certification |
CE |
| Recommended power supply |
ELITE 200 / ELITE 200U |
The spec is subject to change without prior notice.
Bi-directional force is the patent of Wealtec Bioscience.
*Patent No.:217120 / 2001-001686 / US 6,592,734 B2
|
|
Features
Less than one hour electrode-transferring for polyacrylamide gels
Reliable low cost semi-dry apparatus in the market
Fast western blotting protocol less than 7 minutes
Easy to clean and assemble device in the market
Long life anti-corrosive electrode
Ordering Information
| Catalog Number |
Description |
| 1073001 |
Yrdimes, Semi-dry transfer system, 120V (Includes ELITE 200 Power Supply) |
| 1073002 |
Yrdimes, Semi-dry transfer system, 230V (Includes ELITE 200 Power Supply) |
| 1073003 |
Yrdimes, Semi-dry transfer unit |
|
|
 |
