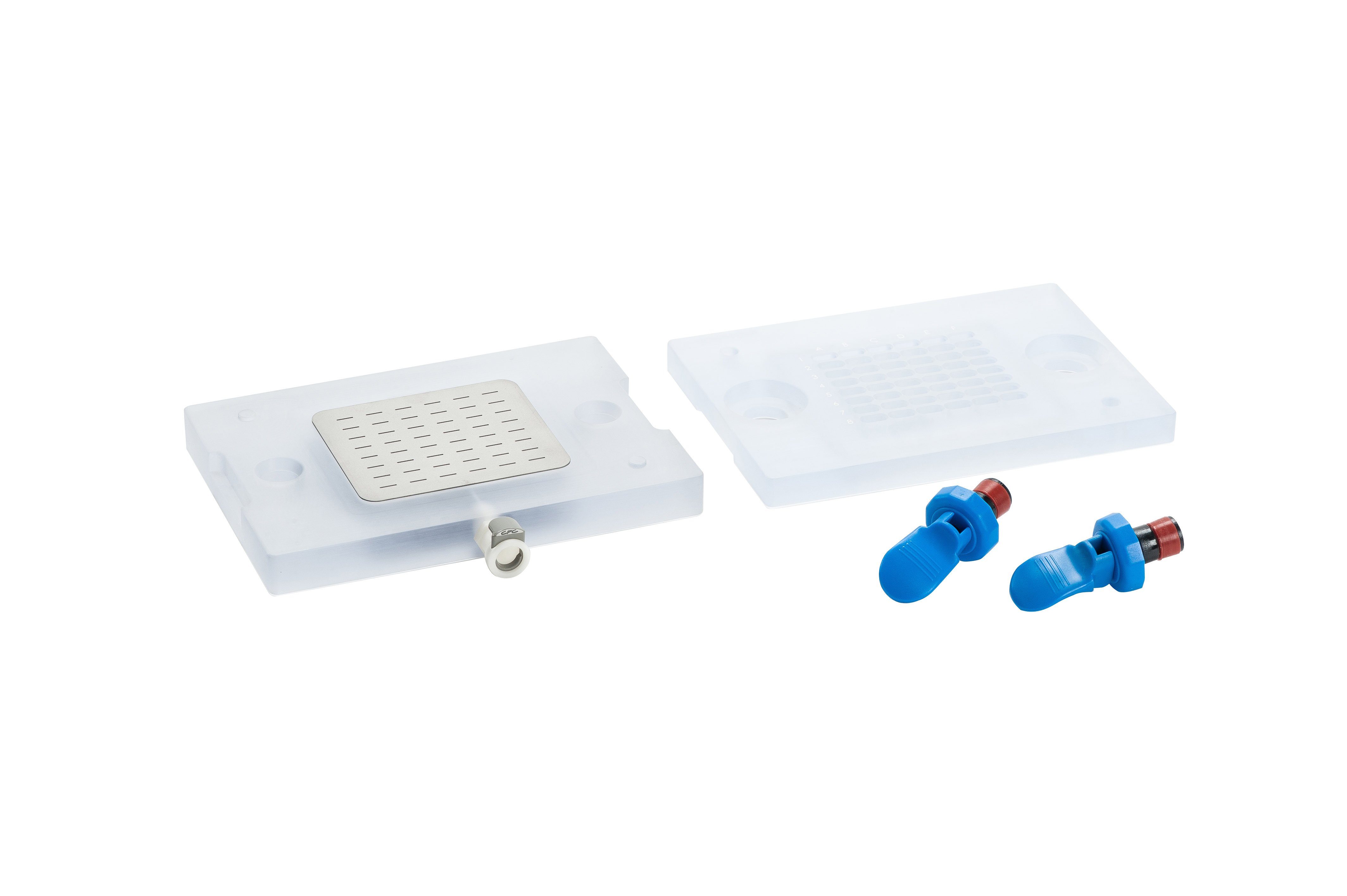

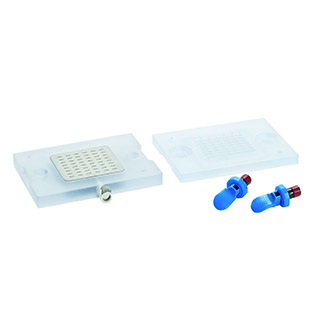

Screw less designed Smart Blotter, so called Vacuum Blotter, slot blotter, equipped with unique edge designed sample wells that offer an effective sealing to prevent cross-contamination between wells, and producing high quality blots. Vacuum provided by the aspirator pump, give a simple and convenient way for screening recombination clone, protein, and DNA / RNA. Up to 700 μl per well volume for sample loading with 8-channel pipette applicable, results are easily qualified through densitometer scanning. Main body is autoclavable for extreme conditions.
- Specification
- Features
- Ordering
- Download
| Design |
Screw-less flip stopper |
| Material of main body |
Poly carbonate |
| Membrane support plate |
316 stainless steel |
| Sample format |
48 wells, 6 x 8 |
| Sample volume per well |
Max. 700μl |
| Membrane size |
97.8 x 83.8mm |
| Slot size |
6.9 x 0.9mm |
| Vacuum |
Water flow or vacuum pump |
| Physical dimensions |
200 x 140 x 35mm (W x D x H) |
| Weight |
2kg |
| Connection |
Quick fit by finger |
| Certification |
CE |
| The spec is subject to change without prior notice. |
|
Features
Unique well edge sealing design prevents cross-contamination between wells and producing high quality blots
Simple and convenient method for screening recombination clone, protein, and DNA / RNA
48-slot arrangement is compatible with multichannel pipette
Flip stopper ensures easy and time-saving assembling
Up to 700μl per well volume for sample loading
Ordering Information
| Catalog Number |
Description |
| 1050001 |
SB-10 Smart blotter complete system, includes aspirator pump, top and base block, membrane support plate, sealing O-ring pair, Flip stopper, Quick fit set, filter paper / 50 pcs, vacuum hose with adaptor assembly and instruction manual |
| 1051001 |
SB-10 Smart blotter complete apparatus |
|
|
 |
Accessories |
|
|
|
|
| |
 |
| Vacuum hose |
|
Vacuum hose with Quick fit connector assembly.
|
|
|
|
|
| |
 |
| Aspirator pump |
|
Aspirator pump
|
|
|
|
|
|
|
|
|
