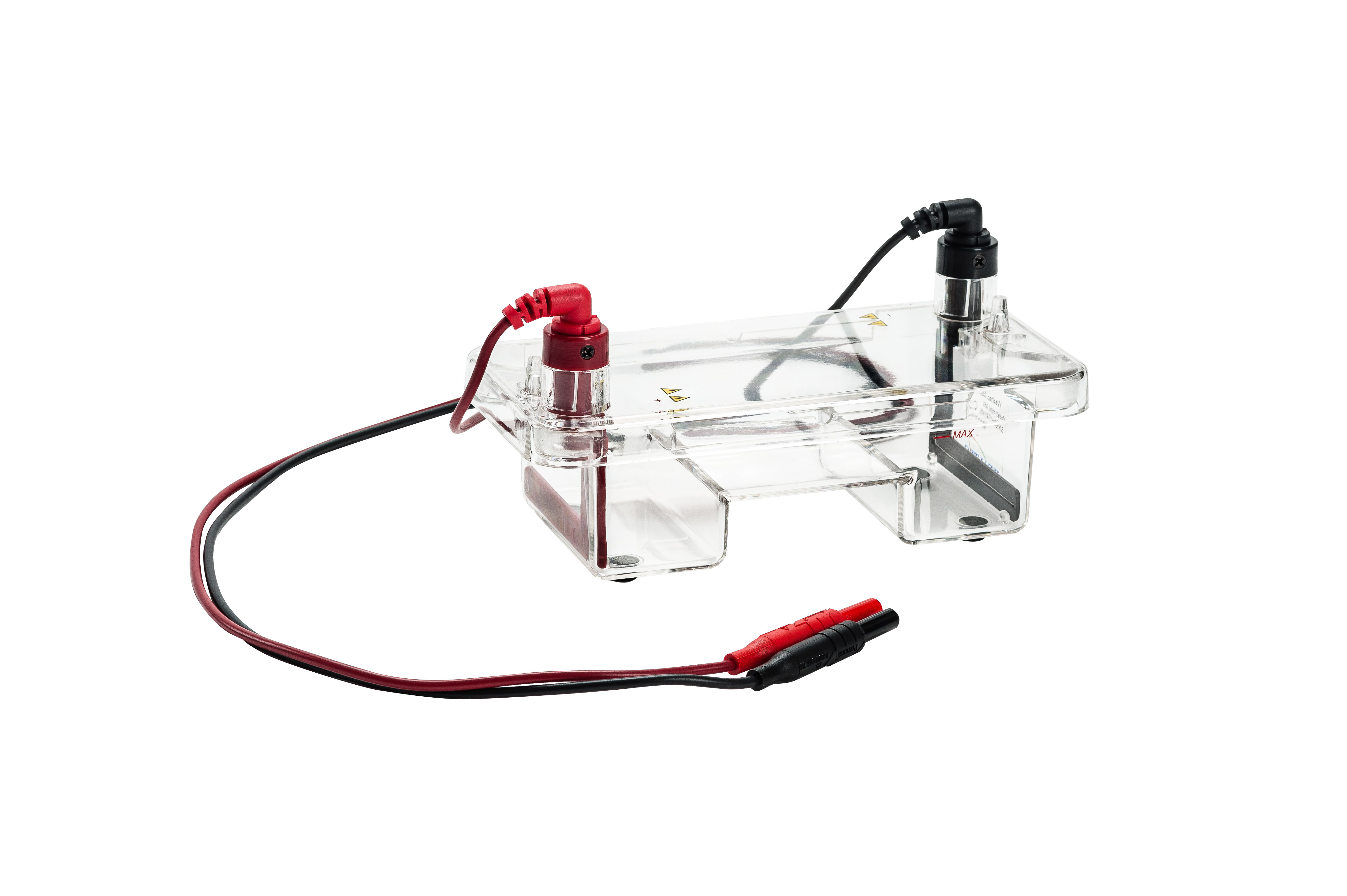

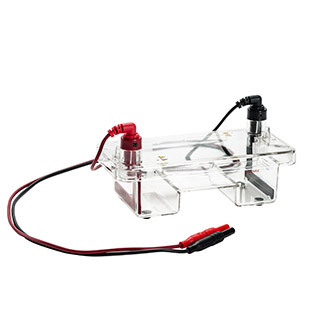

Small size horizontal gel electrophoresis system, Mini GES can accommodate optional trays with 10 x 7cm or 6.5 x 7 cm. Ideal submarine cell made of injection molding technology for DNA and RNA separation as well as GES unit. Unique Dams-claw design guarantees no leakage while gel casting. The system comes with good isolated black and red electrical cables. Quick assembling L type electrode is easy to be cleaned and replaced. Mini GES can run up to 30 samples at a time.
- Specification
- Features
- Ordering
- Download
| Fluorescent ruler |
Yes |
| Tray size |
65 x 70mm / 100 x 70mm |
| Electrode |
Gold-plated electrode with platinum wire |
| Leakage free gel casting |
Dams-claw* |
| Number of teeth |
15, 10 |
| Thickness of comb |
0.75mm, 1.0mm, 1.5mm |
| Sample throughput |
Max. 30 |
| Buffer Volume |
200 to 270ml |
| Cable |
Safety black & red cable |
| Physical dimensions |
200 x 95 x 85mm (W x D x H) |
| Weight |
1kg |
| Certification |
CE |
| Recommended Power Supply |
ELITE / ELITE U series |
The spec is subject to change without prior notice.
*Patent no.:203646/ US6,576,109 B1 / 2000-006995 / 20017041.4 |
|
Features
Unique anti-leakage design for gel casting system
Fluorescence ruler printed on the sample tray
UV transparent sample tray
Ordering Information
| Catalog Number |
Description |
| 1011000 |
mini GES Cell complete system, mini GES cell accompanies with a 10 x 7cm tray, one 10 x 1.0mm teeth and one 15 x 1.0mm teeth fixed-height comb. |
| 1011001 |
mini GES Cell complete system, mini GES cell accompanies with a 6.5 x 7cm tray, one 10 x 1.0mm teeth and one 15 x 1.0mm teeth fixed-height comb. |
Download
| Flyer |
| GES horizontal gel electrophoresis tank |
 |
|
|
 |
Accessories |
|
|
|
|
| |
 |
| Comb 10-teeth 0.75mm (mini GES) |
|
10 teeth fixed height comb, 0.75 mm thick, for mini GES Cell.
|
|
|
|
|
| |
 |
| Comb 10-teeth 1.0mm (mini GES) |
|
10 teeth fixed height comb, 1.0 mm thick, for mini GES Cell.
|
|
|
|
|
| |
 |
| Comb 10-teeth 1.5mm (mini GES) |
|
10 teeth fixed height comb, 1.5 mm thick, for mini GES Cell.
|
|
|
|
|
| |
 |
| Comb 15-teeth 0.75mm (mini GES) |
|
15 teeth fixed height comb, 0.75 mm thick, for mini GES Cell.
|
|
|
|
|
| |
 |
| Comb 15-teeth 1.0mm (mini GES) |
|
15 teeth fixed height comb, 1.0 mm thick, for mini GES Cell.
|
|
|
|
|
| |
 |
| Comb 15-teeth 1.5mm (mini GES) |
|
15 teeth fixed height comb, 1.5 mm thick, for mini GES Cell.
|
|
|
|
|
| |
 |
| UV-transparent tray 6.5 x 7 cm |
|
UV-transparent tray 6.5 x 7 cm, for mini GES Cell.
|
|
|
|
|
| |
 |
| UV-transparent tray 10 x 7 cm |
|
UV-transparent tray 10 x 7 cm, for mini GES Cell.
|
|
|
|
|
|
|
|
|
