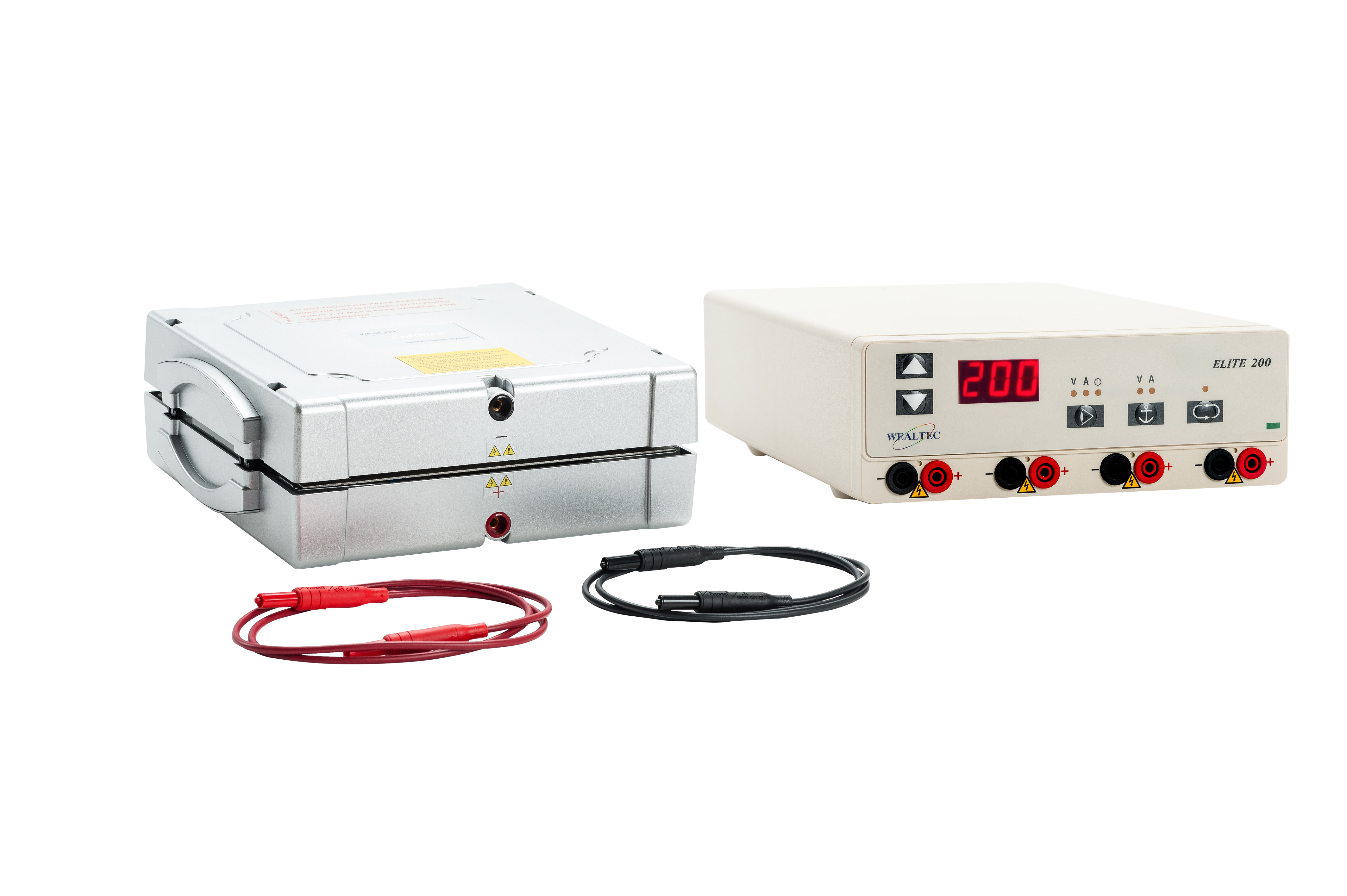

Yrdimes, fast blotting device for agarose and protein gel, comprises with unique bi-directional force* design which use eight pieces spring to get most even force during the blotting process. Completed with stainless steel and platinum plated titanium plate electrodes, as worked with ELITE 200 power supply, Yrdimes provides stable electric field allowing a single layer of four side-by-side mini gels or a maximum up to 18 x 20cm gel or capable of transferring up to three stacking layers of polyacrylamide gels. It’s time saving for single or multiple blotting. Applied with proper buffer, transfer can be completed within 7 minutes.
*Bi-directional force is the patent of Wealtec Bioscience.
ELITE 200
The Elite 200 provides the maximum voltage output of 200V and extremely high current output of 2A, with 4 sets of output terminals mainly for running electrophoresis with nucleic acid and SDS-PAGE. Easy control Constant V/A with automatic crossover, adjustable voltage and current in minimum 1V and 10mA increment provide flexible condition and parameter settings. Three digits seven segments LED readout voltage, current and time. Error messages includes no load detection, sudden load change, over voltage protection, automatic recovery after power failure, short circuit, and current differential alarm for easy troubleshooting. IQ / PQ / OQ protocol is available.
- Specification
- Features
- Ordering
- Download
YRDIMES Semi-Dry
| Gel size |
Max. 4 pieces 100 x 80mm |
| Electrode size |
205 x 205 mm with 1mm thickness |
| Transfer area |
180 x 200mm |
| Anode |
Platinum plated on titanium plate |
| Cathode |
316 stainless steel plate |
| Minimum transfer time |
7 minutes |
| Force apply |
Simultaneously up & down force by 8 springs* |
| Cable |
High efficiency black & red cable |
| Physical dimensions |
225 x 225 x 85mm (W x D x H) |
| Weight |
1.2kg |
| Operating environment |
Temp:0-40°C, Humidity: 10-90% R.H. Non-condensing |
| Certification |
CE |
| Recommended power supply |
ELITE 200 / ELITE 200U |
The spec is subject to change without prior notice.
Bi-directional force is the patent of Wealtec Bioscience.
*Patent No.:217120 / 2001-001686 / US 6,592,734 B2 |
|
ELITE 200
| Voltage automatic |
Yes |
| Current automatic |
Yes |
| Output Terminals |
4 sets |
| Current adjust steps |
0.01-2A in 0.01 A |
| Voltage in 1 volt steps |
5-200 V |
| Output power |
200 W max. |
| Operating Temperature |
0-40℃ |
| Timer |
0-999 mins |
| Display |
3 digit 7 seg LED |
| Touch Pad |
Yes |
| Alarm |
Yes |
| Input Power |
120V / 230V , 50-60 Hz |
| Physical dimensions |
240 x 320 x 73mm (W x D x H) |
| Weight |
2kg |
| Certification |
CE |
*The spec is subject to change without prior notice.
**ELITE 200/300/200U/300U/600U power supply comply with EN 61010-1
|
|
Features
Fast western blotting protocol less than 7 minutes
Reliable low cost semi-dry apparatus in the market
Easy to clean and assemble device in the market
Long life anti-corrosive electrode
Less than one hour electrode-transferring for polyacrylamide gels
Trustable and accurate power source in the market
Small footprint, stackable, outshell use fire resistance material
Up to four sets output
Membrane key pad for functional setting
Three digit seven segment LED read out voltage,current and time
Complete error messages for trouble shooting
Ordering Information
| Catalog Number |
Description |
| 1073001 |
Yrdimes, Semi-dry transfer system, 120V (Includes ELITE 200 Power Supply) |
| 1073002 |
Yrdimes, Semi-dry transfer system, 230V (Includes ELITE 200 Power Supply) |
|
|
 |
