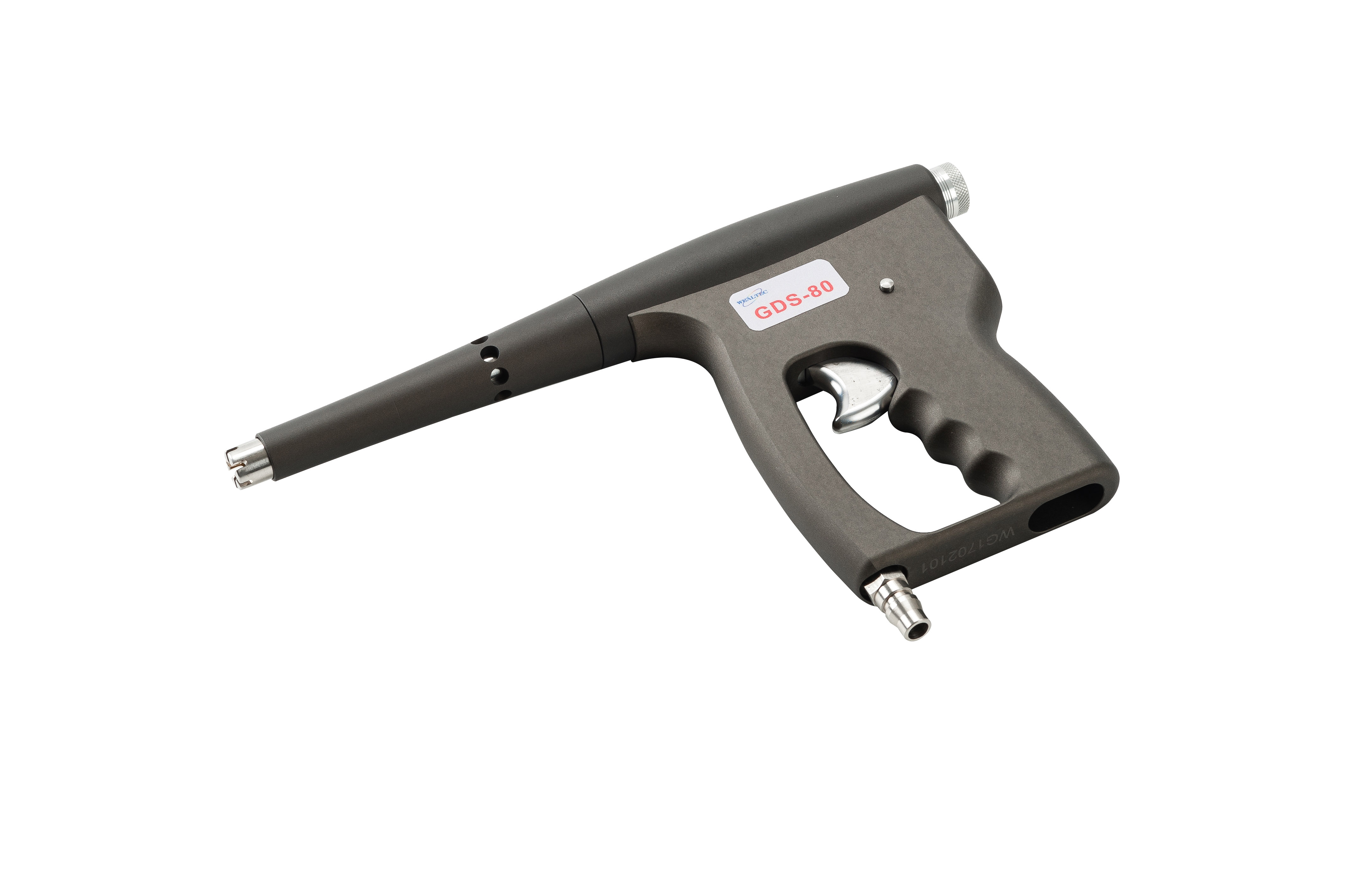

Low-pressure Gene Delivery System (GDS-80)

GDS-80 is invented upon patented aerodynamic theory to utilize a supersonic gas flow generated by the pressure difference between inside the barrel and gas chamber, and accelerate the bio-particles to 300m / sec by low pressure Helium gas or 200m / sec by Nitrogen gas. GDS-80 can be widely used in the fields of gene therapy, vaccine development, transient or stable gene expression, transgenic plant study, agriculture biotechnology, and immune research. It is a highly efficient biolistic transfection tool to deliver not only micro carrier-coated particle for plant cell transfection but also naked DNA for in vivo and in vitro cell transfection. Transfected reporter gene, such as GUS, GFP, can found easily around bombardment site. Furthermore, due to the low pressure is used to drive the particle into the cell, it provides minimal cell damage and lowest noise. Wide range accessories are available for living plant, leaf, pollen, petri-dish.

  • Specification
  • Features
  • Ordering
  • Download
Main Body All stainless steel made mainly consist of O-ring in between ensure no gas leakage. Weighted around 1.2 kg.
Sample loading sleeve Finger-tight eight sample loading holes without using tools. Allow right-handed and left-handed users to adjust the barrel for their regular using habit.
Barrel Autoclavable 4.5(plant)/10.0(animal) mm inside diameter barrel designed with inner mirror surface keeps no resistance while performing particle delivery.
Mechanical differential Needle Valve Adjustable differential needle valve optimizes spray even.
Safety Pressed-release safety trigger prevents mistake happened when the process is not ready yet.
Connection Double side female stainless steel quick connector equipped with 8mm ID Nylon hose for connecting main body and gas cylinder within a second without any tool.
Adjust & display Two pressure gauges equipped regulator with flow meter, adjustable up limit to 80 psi bypass releasing valve prevent to damage the trigger.
The spec is subject to change without prior notice.

Features

  • Available to use both Helium and Nitrogen gas

  • Portable one system for plant and animal cell

  • Naked DNA delivery for animal applications

  • No rupture disc and vacuum pump required

  • Simple preparation of bombardment

  • Barrel is autoclaveable

  • Minimum cell damage

Ordering Information

Catalog Number Description
1081001 GDS-80U Low-pressure Gene Delivery Universal System for Plant & Animal, complete with mainbody, 4.5 / 10mm diameter barrel set , gas pressure regulator, hose assembly, O-ring, sample loading sleeve, controlled temperature sample preparation device (1093001) and instruction manual
1081002 GDS-80P Low-pressure Gene Delivery System for Plant, complete with mainbody, 4.5mm diameter barrel, gas pressure regulator, hose assembly, O-ring, sample loading sleeve, controlled temperature sample preparation device (1093001) and instruction manual
1081003 GDS-80A Low-pressure Gene Delivery System for Animal, complete with mainbody, 10mm diameter barrel, gas pressure regulator, hose assembly, O-ring, sample loading sleeve, controlled temperature sample preparation device (1093001) and instruction manual

Download

Flyer
GDS-80 gene delivery system
Application Note
In Vivo Plant Experiment Via GDS-80
Diversity of Plant Applications with GDS-80 Accessories
Technical Bulletin
Adjustment of GDS-80 differential needle valve
Operation of GDS-80 in the Laminar Flow
Clean the Barrel between Shots in GDS-80 to Prevent Cross-Contamination
Gas Output Varied Reproducibility in GDS-80
Reference Books
Reference Books 1
Reference Books 2

Accessories

4.5 mm diameter barrel
4.5 mm diameter barrel


10 mm diameter barrel
10 mm diameter barrel


GDS-80 System mainbody
GDS-80 System mainbody


Sample loading sleeve
Sample loading sleeve


O-ring
O-ring


Gas pressure regulator
Gas pressure regulator


Hose assembly
Hose assembly


Dish type target spacer for plant, Height: 3cm, Diameter: 10cm.
Dish type target spacer for plant, Height: 3cm, Diameter: 10cm.


Dish type target spacer for plant, Height: 6cm, Diameter: 10cm.
Dish type target spacer for plant, Height: 6cm, Diameter: 10cm.


UTS-10 Universal Target Spacer complete
UTS-10 Universal Target Spacer complete


LC-10 Leaf clamp complete
LC-10 Leaf clamp complete


LC-5 Leaf clamp complete
LC-5 Leaf clamp complete


Spread even calibration kit
Spread even calibration kit


Adjustable Stand
Adjustable Stand
