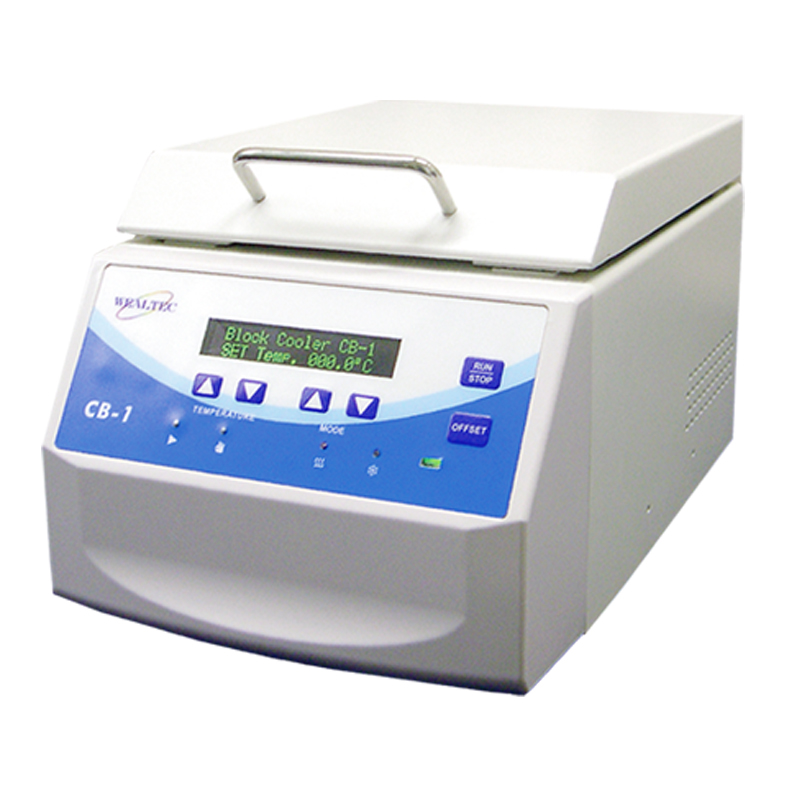

Block Cooler equipped with 9 preset temperature programs with temperature range 0 - 75°C and less than 0.5°C deviation. Nine preset programs include: 0°C for ingredient storage, 4°C for cell lysis / cDNA synthesis, 16°C for DNA ligation, 25°C for restriction enzyme reaction, 37°C for denaturation in DNA extraction / cDNA synthesis, 42°C for reverse transcription / gene transformation, 55°C for gentle heating in DNA extraction, 65°C for proteinase K inactivation, and 72°C for polymerase reaction. Top lid for heat isolated, and OFFSET function is also included.
- Specification
- Features
- Ordering
- Download
| Temperature range |
0°C to 75°C |
| Pre-set temperatures |
9 (0, 4, 16, 25, 37, 42, 55, 65, and 72°C) |
| Temperature accuracy |
+/- 0.5°C full range |
| Cooling performance |
35 minutes (from 25°C to 0°C) |
| Temperature control |
PID microprocessor controlled |
| Temperature calibration |
Pre-calibrated |
| Display |
LCD display |
| Heating/Cooling element |
Peltier |
| Over temperature cutoff |
100°C |
| Power |
AC 100-240 V, 50-60 Hz with 75 Watt |
| Cabin dimensions |
107 x 71 x 38mm (W x D x H ) |
| Physical dimensions |
200 x 304 x 184mm (W x D x H) |
| Weight |
6.5kg |
| Certification |
CE |
|
Features
Preset temperature programs for specific applications
Cost-effective controlled temperature apparatus
Electric ice cube in every laboratory
Block heater and cooler in one unit
Ordering Information
| Catalog Number |
Description |
| 1093001 |
CB-1 Block Cooler, Block Cooling / Heating drybath with built incubation program and 48-well aluminum block, 100 - 240 VAC / 50 - 60Hz |
| 1093002 |
CB-1 Block Cooler, Block Cooling / Heating drybath with built incubation program and 35-well aluminum block (for 1.5ml tube), 100 - 240 VAC / 50 - 60Hz |
|
|
 |
Accessories |
|
|
|
|
| |
 |
| Block Extractor |
|
Block Extractor for Block Heater
|
|
|
|
|
| |
 |
| 48-well aluminum block for CB-1 |
|
48-well aluminum block for CB-1
|
|
|
|
|
| |
 |
| 35-well aluminum block (1.5ml Tube) for CB-1 |
|
35-well aluminum block for CB-1
|
|
|
|
|
| |
 |
| Rubber (48-well) |
|
Rubber (48-well)
|
|
|
|
|
| |
 |
| Rubber (35-well) |
|
Rubber (35-well)
|
|
|
|
|
|
|
|
|
