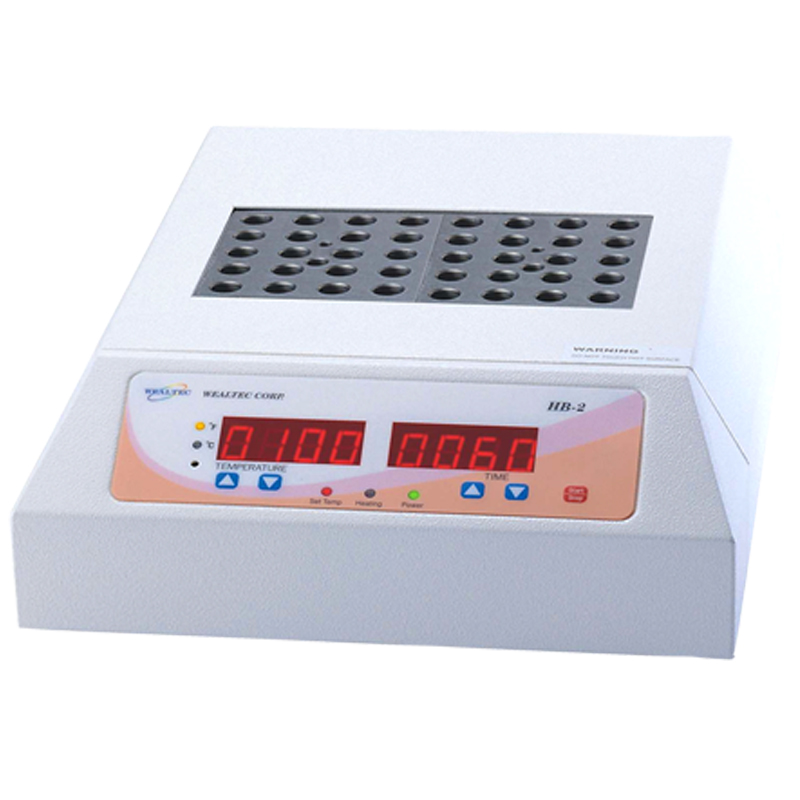

HB-1/HB-2 are reliable bench top block heater in the market, target for all kinds laboratory use, high accuracy temperature control technique bring most trustable temperature requirement, variety Aluminum block select.
Target temperature and actual temperature display on two pieces four digit seven segment LED display, ambient temperature to 200°C, over heat protection at 220°C, heated and temperature balance by Red/Green LED indicator, °C / °F selectable, in-built platinum sensor for calibrated temperature profile, HB-1 for single block, HB-2 for dual block, both two models no need to additional temperature probe for temperature detection.
- Specification
- Features
- Ordering
- Download
| Model |
HB-1 |
HB-2 |
| Temperature range |
30 °C to 200 °C |
| Temperature stability |
1 °C @ 100 °C by 120 minutes test |
| Temperature uniformity |
< 0.5 °C @ 100 °C |
| Temperature accuracy |
< 1 °C @ 100 °C (@230V/50Hz, 115V/60Hz) |
| Temperature controller |
Pre-calibrated |
| Display and control |
Two large size four digit LED display |
| Temperature calibration |
Built-in and pre-calibrated |
| Heating rate |
< 18 minutes from ambient to 100 °C @ 230V, 50Hz |
| Number of blocks |
1 |
2 |
| Heat power |
250W |
500W |
| Over temperature cutoff |
212 °C |
| Timer |
0-999 minutes |
| Power |
120/60Hz; 230V/50Hz, voltage variation < 2% |
| Cabin dimensions |
102 x 78 x 46 (W x D x H) |
156 x 102 x 80(W x D x H) |
| Physical dimensions |
310 x 250 x 80 (W x D x H) |
| Weight withouto block |
3.3kg |
4.8kg |
| Certification |
CE |
| The spec is subject to change without prior notice. |
|
Features
Low cost, safe heating device at laboratory
Selectable wide variety aluminum block
No more external temperature probe
COD reactor.
Ordering Information
| Catalog Number |
Description |
| 1092107 |
HB-2 Block Heater with block extractor and two optional aluminum blocks, 120V |
| 1092108 |
HB-2 Block Heater with block extractor and two optional aluminum blocks, 230V |
| 1092021 |
HB-2 Block Heater w/o block, 120V |
| 1092022 |
HB-2 Block Heater w/o block, 230V |
Download
| Flyer |
| HB-1/HB-2 block heater |
 |
| Technical Bulletin |
| Block Heater Operation |
|
|
|
 |
Accessories |
|
|
|
|
| |
 |
| Block Extractor |
|
Block Extractor for Block Heater
|
|
|
|
|
| |
 |
| Aluminum block (12) |
|
12 x 16 mm test tubes aluminum block for HB-1/HB-2
|
|
|
|
|
| |
 |
| Aluminum block (20) |
|
20 x 1.5 ml microtubes aluminum block for HB-1/HB-2
|
|
|
|
|
| |
 |
| Aluminum block (30) |
|
30 x 0.5 ml microtubes aluminum block for HB-1/HB-2
|
|
|
|
|
| |
 |
| Aluminum block (88 x 0.2 ml) |
|
88 x 0.2ml microtubes aluminum block for HB-1/HB-2.
|
|
|
|
|
| |
 |
| Aluminum block (12 x 19 mm) |
|
12 x 19mm test tubes aluminum block for HB-1/HB-2.
|
|
|
|
|
| |
 |
| Aluminum block (24 x 1.5 ml) |
|
24 x 1.5ml microtubes aluminum block for HB-1/HB-2.
|
|
|
|
|
| |
 |
| Aluminum block (15 x 16 mm) |
|
15 x 16mm test tubes aluminum block for HB-1/HB-2.
|
|
|
|
|
|
|
|
|
