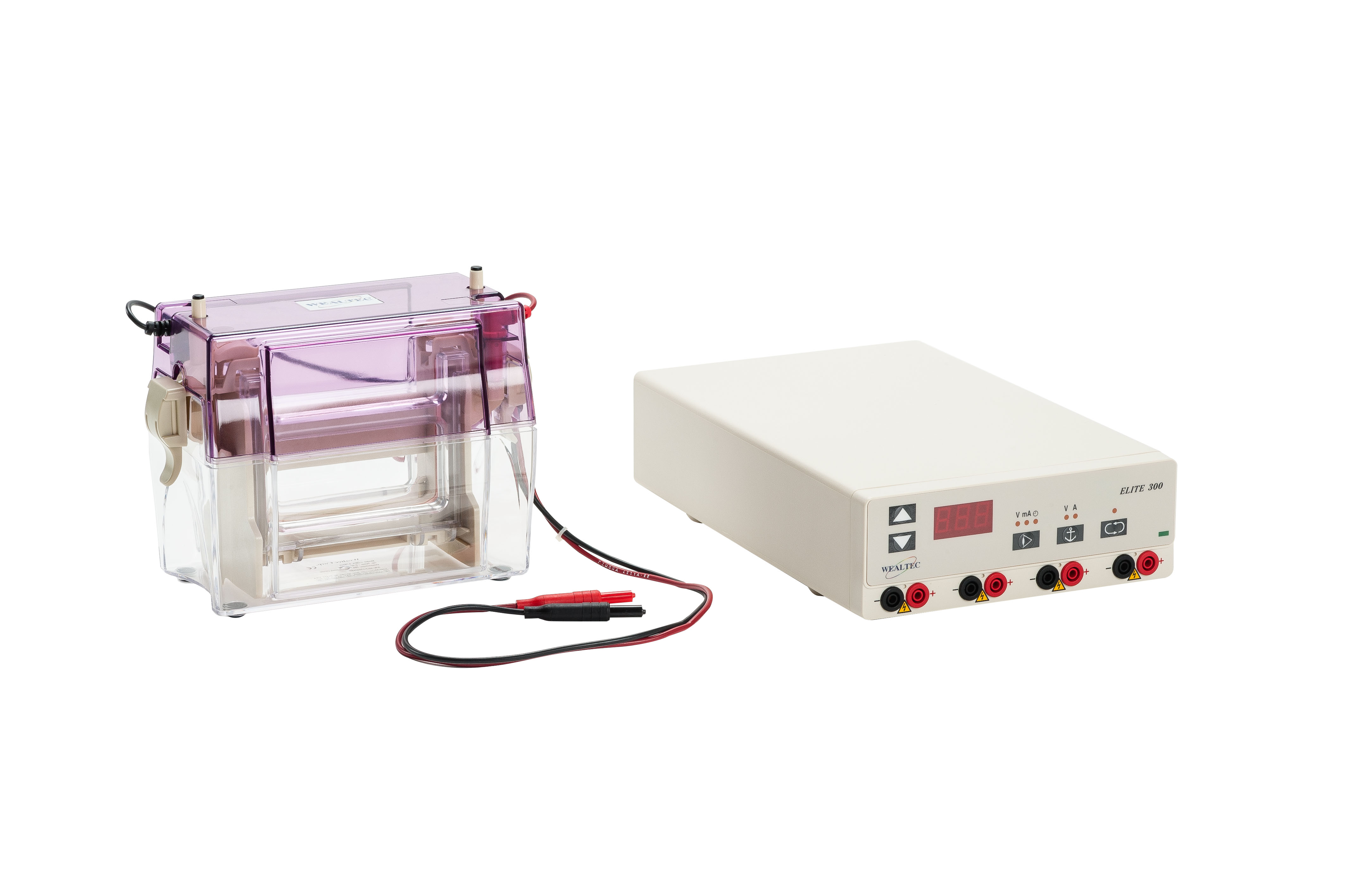

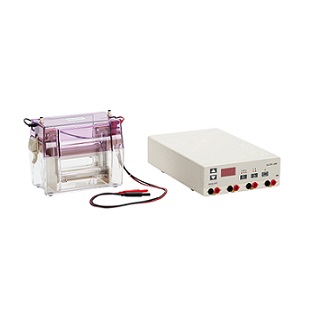

V-GES, the midi vertical electrophoresis system, comprises with tank, electrode module, casting module, and optional blotting module. Electrophoresis tank was built by injection mode technology. Special anti-leak rubber and clasp-release design guarantee leakage free while gel casting. Three thicknesses spacers, 0.5, 0.75 and 1.0mm, and two types comb, 10 and 15 well are available. V-GES is specialized designed for running two gels simultaneously. The system provides the minimal change in temperature on electrophoresis and no extra cooling device needed. ELITE series are recommended power supplies for combination as a perfect electrophoresis system.

The Elite 300 plus, provides the maximum voltage output of 300V and current output 500mA, with 4 sets of output terminals mainly for routine electrophoresis with nucleic acid and SDS-PAGE. With high accuracy and stable output applicable for wet transfer. Easy control Constant V/A with automatic crossover, adjustable voltage and current in minimum 1 V and 1 mA increment provide flexible condition and parameter settings. Three digits seven segments LED readout voltage, current and time. Error messages includes no load detection, sudden load change, over voltage protection, automatic recovery after power failure, short circuit, and current differential alarm for easy troubleshooting. IQ / PQ / OQ protocol is available.

• Specification
• Features
• Ordering
• Download

V-GES

Gel size (mm) 100 x 80 (W x H) Gel thickness (mm) 0.5 / 0.75 / 1.0 Sponge size (mm) - Applicable number of samples 10 to 30 Number of gels 1 or 2 gels Transfer capability - Blotter module - Buffer requirement (ml) - Upper buffer volume (ml) 250 to 300 Lower buffer volume (ml) 500 to 1,400 Cassette dimensions (mm) - Distance cathode to anode - Electrode module w/ platinum wire For 1 or 2 gels operation* Casting module 2 sets for gel casting* Glass plate 5 sets Selectable comb teeth 10/15 teeth Comb thickness (mm) 0.5 / 0.75 / 1.0 Physical dimensions (mm) 200 x 130 x 165 (W x D x H) Weight (kg) 3 Certification CE Recommend Power Supply ELITE 200 / 300 / 300PLUS / 600U The spec is subject to change without prior notice. Clasp-release design* is the patent of Wealtec Bioscience Patent No.: M277920/ ZL 2005 2 0009035.8 / Nr. 20 2005 005 050.4 / 2005-002015 /US 7,5,44,279 B2



ELITE 300 PLUS

Voltage automatic Yes Current automatic Yes Output Terminals 4 sets Current adjust steps 4-500mA in 1 mA Voltage in 1 volt steps 10-300 V Output power 90 W max. Operating Temperature 0-40℃ Timer 0-999 mins Display 3 digit 7 seg LED Touch Pad Yes Alarm Yes Input Power 120V / 230V , 50/60 Hz Physical dimensions (mm) 240 x 320 x 73 (W x D x H) Weight (kg) 2.0 Certification CE *The spec is subject to change without prior notice. **ELITE 200/300/200U/300U/600U power supply comply with EN 61010-1

Features

• Interchangeable module for SDS-PAGE electrophoresis and blotting

• Sufficient buffer with no need for extra cooling device

• Sandwich cassette assembly clamps for blotting

• Capable of transferring two gels simultaneously

• Anti-leakage clasp-release gel casting module

• Designed for protein and DNA electrophoresis

• Easy handling and no maintenance design

• No load detection, sudden load change, over voltage protection, automatic recovery after power failure, short circuit, current differential alarm

• Three digit seven segment LED read out voltage, current and time

• Small footprint, stackable, outshell use fire resistance material

• Trustable and accurate power source in the market

• Complete error messages for trouble shooting

• Membrane key pad for functional setting

• Up to four sets output

Ordering Information

Catalog Number	Description
1031111	V-GES(0.5mm) complete system + power supply, system includes electrode module, electrophoresis tank, casting module/2 set, glass plate set/5 sets, 0.5mm spacer/4 pcs, 0.5mm 10 teeth comb/2 pcs, One-gel gate, Alignment card, Glass plate separator, instruction manual, ELITE 300 Plus Power Supply, 120V, 50/60Hz
1031112	V-GES(0.5mm) complete system + power supply, system includes electrode module, electrophoresis tank, casting module/2 set, glass plate set/5 sets, 0.5mm spacer/4 pcs, 0.5mm 10 teeth comb/2 pcs, One-gel gate, Alignment card, Glass plate separator, instruction manual, ELITE 300 Plus Power Supply, 230V, 50/60Hz
1031113	V-GES(0.75mm) complete system + power supply, system includes electrode module, electrophoresis tank, casting module/2 set, glass plate set/5 sets, 0.75mm spacer/4 pcs, 0.75mm 10 teeth comb/2 pcs, One-gel gate, Alignment card, Glass plate separator, instruction manual, ELITE 300 Plus Power Supply, 120V, 50/60Hz
1031114	V-GES(0.75mm) complete system + power supply, system includes electrode module, electrophoresis tank, casting module/2 set, glass plate set/5 sets, 0.75mm spacer/4 pcs, 0.75mm 10 teeth comb/2 pcs, One-gel gate, Alignment card, Glass plate separator, instruction manual, ELITE 300 Plus Power Supply, 230V, 50/60Hz
1031115	V-GES(1.0mm) complete system + power supply, system includes electrode module, electrophoresis tank, casting module/2 set, glass plate set/5 sets, 1.0mm spacer/4 pcs, 1.0mm 10 teeth comb/2 pcs, One-gel gate, Alignment card, Glass plate separator, instruction manual, ELITE 300 Plus Power Supply, 120V, 50/60Hz
1031116	V-GES(1.0mm) complete system + power supply, system includes electrode module, electrophoresis tank, casting module/2 set, glass plate set/5 sets, 1.0mm spacer/4 pcs, 1.0mm 10 teeth comb/2 pcs, One-gel gate, Alignment card, Glass plate separator, instruction manual, ELITE 300 Plus Power Supply, 230V, 50/60Hz
