V-GES, the midi vertical electrophoresis system, comprises with tank, electrode module, casting module, and optional blotting module. Electrophoresis tank was built by injection mode technology. Special anti-leak rubber and clasp-release design guarantee leakage free while gel casting. Three thicknesses spacers, 0.5, 0.75 and 1.0mm, and two types comb, 10 and 15 well are available. V-GES is specialized designed for running two gels simultaneously. The system provides the minimal change in temperature on electrophoresis and no extra cooling device needed. ELITE series are recommended power supplies for combination as a perfect electrophoresis system.
E-Blotter

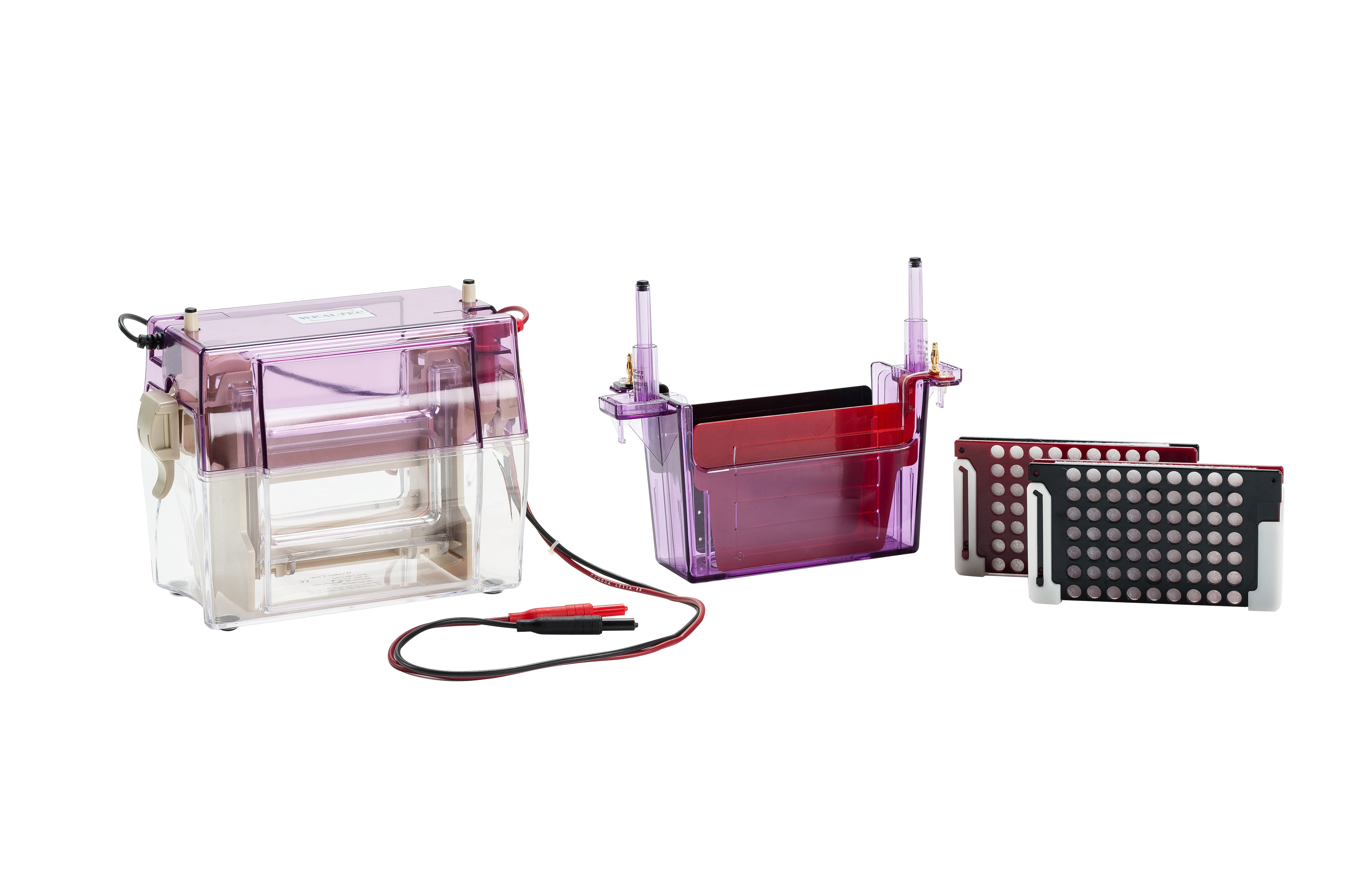

E-Blotter is a high resolution gel transfer apparatus, which includes one electrophoresis tank, one cassette holder and two sandwich blotting cassettes and one pair electrode. It can transfers two gels simultaneously and apply to protein SDS-PAGE and agarose gels.
ELITE series are recommended power supplies to combine as perfect blotting system.
- Specification
- Features
- Ordering
- Download
V-GES
| Gel size (mm) |
100 x 80 (W x H) |
| Gel thickness (mm) |
0.5 / 0.75 / 1.0 |
| Sponge size (mm) |
- |
| Applicable number of samples |
10 to 30 |
| Number of gels |
1 or 2 gels |
| Transfer capability |
- |
| Blotter module |
- |
| Buffer requirement (ml) |
- |
| Upper buffer volume (ml) |
250 to 300 |
| Lower buffer volume (ml) |
500 to 1,400 |
| Cassette dimensions (mm) |
- |
| Distance cathode to anode |
- |
| Electrode module w/ platinum wire |
For 1 or 2 gels operation* |
| Casting module |
2 sets for gel casting* |
| Glass plate |
5 sets |
| Selectable comb teeth |
10/15 teeth |
| Comb thickness (mm) |
0.5 / 0.75 / 1.0 |
| Physical dimensions (mm) |
200 x 130 x 165 (W x D x H) |
| Weight (kg) |
3 |
| Certification |
CE |
| Recommend Power Supply |
ELITE 200 / 300 / 300PLUS / 600U |
The spec is subject to change without prior notice.
Clasp-release design* is the patent of Wealtec Bioscience
Patent No.: M277920/ ZL 2005 2 0009035.8 / Nr. 20 2005 005 050.4 /
2005-002015 /US 7,5,44,279 B2
|
|
E-blotter
| Gel size (mm) |
110 x 75 ( W x H) |
| Sponge size (mm) |
110 x 75 ( W x H) |
| Transfer capability |
1 or 2 gels |
| Blotter module |
2 cassettes simultaneous |
| Buffer requirement (ml) |
1,450 |
| Cassette dimension |
140 x 11 x 77 mm (W x D x H) |
| Distance cathode to anode (cm) |
5 |
| Weight (kg) |
1 |
| Physical dimensions (mm) |
200 x 130 x 165 (W x D x H) |
| Certification |
CE |
| Recommend power supply |
ELITE 200/ 300/ 300plus / 600 |
The spec is subject to change without prior notice.
|
|
Features
Interchangeable module for SDS-PAGE electrophoresis and blotting
Sufficient buffer with no need for extra cooling device
Sandwich cassette assembly clamps for blotting
Capable of transferring two gels simultaneously
Anti-leakage clasp-release gel casting module
Designed for protein and DNA electrophoresis
Easy handling and no maintenance design
Ordering Information
| Catalog Number |
Description |
| 1030001 |
V-GES + E-Blotter complete system, system includes V-GES(0.5mm) complete system with E-Blotter module |
| 1030002 |
V-GES + E-Blotter complete system, system includes V-GES(0.75mm) complete system with E-Blotter module |
| 1030003 |
V-GES + E-Blotter complete system, system includes V-GES(1.0mm) complete system with E-Blotter module |
|
|
 |
