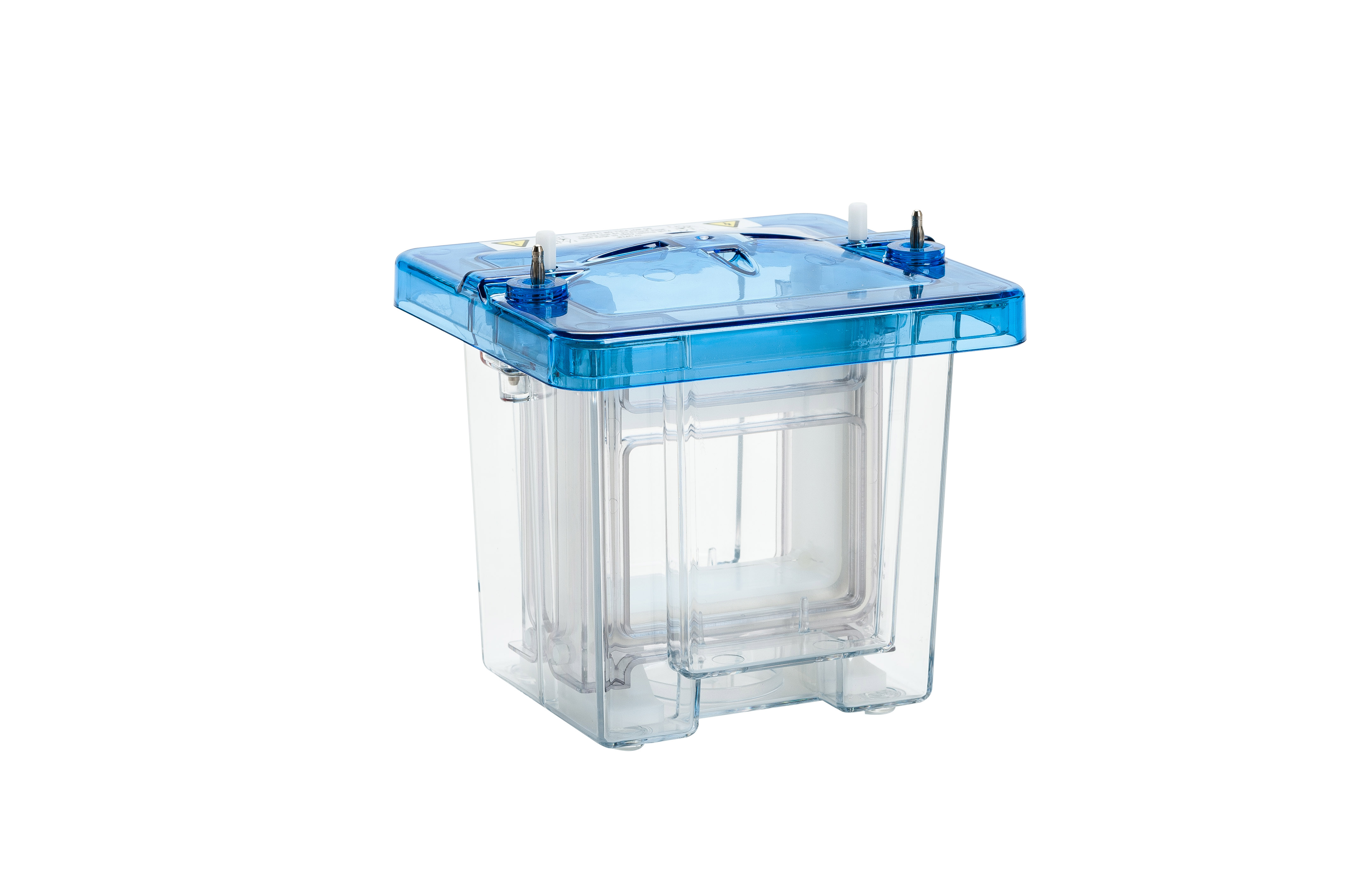

Mini V-GES comprises with tank, electrode module, and blotting module. Gel or blotting cassette can be extracted from the core without removing the core from the tank, allowing pick and place in seconds. Provides the capability for running two gels or two blots simultaneously under identical temperature controlled buffer conditions using freezer blocks. Optional Handcasting kit is available for handmade gel. ELITE series are recommended power supplies for combination as a perfect blotting and electrophoresis system.
- Specification
- Features
- Ordering
- Download
| No. of gels |
>1-2 |
| Compatible Precast gels |
>Rapid PAGE / NuPAGE®* / PAGEr®*
Expedeon®*/ SERVAGel®* / Clear PAGE™* |
| Precast gel sizes that fit (cm) |
>10 x 10 / 10 x 9 / 10 x 8 |
| Handcast glass plate set dimensions (cm) |
>10(W) x 10(H) |
| Total Buffer Volume for 2 gels / blots |
>940 ml |
| Gel run time |
>30-60 minutes |
| Blot run time |
>75 minutes |
| Recommended power supply |
>ELITE 300 / ELITE 300 Plus / ELITE 200 |
| Physical dimensions (cm) |
>16.5 (W) x 15.24(D) x 21.59 (H) |
*NuPAGE® is a trademark of Invitrogen Corporation, PAGEr® is a trademark of Lonza, Expedeon®* is a trademark of Expedeon, SERVAGel® is a trademark of Serva, and Clear PAGE™ is a trademark of C.B.S.
|
|
Features
Applicable for various brands on the market
Electrophoresis, blotting in one package
Hand casting kit available
Ordering Information
| Catalog Number |
Description |
| 2013031P |
Mini V-GES complete system for precasting gels only |
|
|
 |
Accessories |
|
|
|
|
| |
 |
| Rapid PAGE Precast gels |
| Long shelf life precast gel offers a significant technological advancement in vertical gel electrophoresis. 10 x 10 cm cassettes, and 8 x 10 cm cassettes are compatible with several manufacturer’s apparatuses. |
|
|
|
|
| |
 |
| Dual Gel Handcasting kit |
|
Dual gel handcastingl kit includes 0.75 mm, 10 wells |
|
|
|
|
|
|
|
|
Related Products |
|
|
|
|
| |
 |
| E-Blotter |
|
E-Blotter, so called wet blotter, is a high resolution gel transfer apparatus, which includes one electrophoresis tank, one cassette holder and two sandwich blotting cassettes and one electrode stand. As applied with V-GES electrophoresis tank, it can transfers two gels simultaneously and apply to protein SDS-PAGE and agarose gels. ELITE series are recommended power supplies to combine as perfect blotting system. |
|
|
|
|
| |
 |
| YRDIMES Semi-Dry Blotter |
|
Yrdimes, fast blotting device for agarose and protein gel, comprises with unique bi-directional force* design which use eight pieces spring to get most even force during the blotting process. Completed with stainless steel and platinum plated titanium plate electrodes, as worked with ELITE 200 power supply, Yrdimes provides stable electric field allowing a single layer of four side-by-side mini gels or a maximum up to 18 x 20cm gel or capable of transferring up to three stacking layers of polyacrylamide gels. It’s time saving for single or multiple blotting. Applied with proper buffer, transfer can be completed within 7 minutes.
|
|
|
|
|
| |
 |
| ELITE 300 Power Supply |
|
The Elite 300, provides the maximum voltage output of 300V and current output 400mA, with 4 sets output terminal mainly for routine electrophoresis with nucleic acid and SDS-PAGE. With high accuracy and stable output applicable for wet transfer. Easy control Constant V/A with automatic crossover, adjustable voltage and current in minimum 1 V and 1 mA increment provide flexible condition and parameter settings. Three digits seven segments LED readout voltage, current and time. Error messages includes no load detection, sudden load change, over voltage protection, automatic recovery after power failure, short circuit, and current differential alarm for easy troubleshooting. IQ / PQ / OQ protocol is available.
|
|
|
|
|
| |
 |
| ELITE 200 Power Supply |
|
The Elite 200 provides the maximum voltage output of 200V and extremely high current output of 2A, with 4 sets of output terminals mainly for running electrophoresis with nucleic acid and SDS-PAGE. Easy control Constant V/A with automatic crossover, adjustable voltage and current in minimum 1V and 10mA increment provide flexible condition and parameter settings. Three digits seven segments LED readout voltage, current and time. Error messages includes no load detection, sudden load change, over voltage protection, automatic recovery after power failure, short circuit, and current differential alarm for easy troubleshooting. IQ / PQ / OQ protocol is available.
|
|
|
|
|
| |
 |
| KETA G |
|
The KETA G series is a research grade computer controlled gel documentation system ideal for molecular biology laboratory. Comprise of high resolution 16bit B/W 5.0M pixels RT camera, computer controlled lens, five position motorized filter wheel coupled with a high transparent amber filter, 2X close-up lens. Large visual area 26 X 30cm, dual high intensity U7 LED Epi source, low background 302nm UV transilluminator, UV radiation safety interlock darkroom, 30 seconds exposure time Max. |
|
|
|
|
|
|
