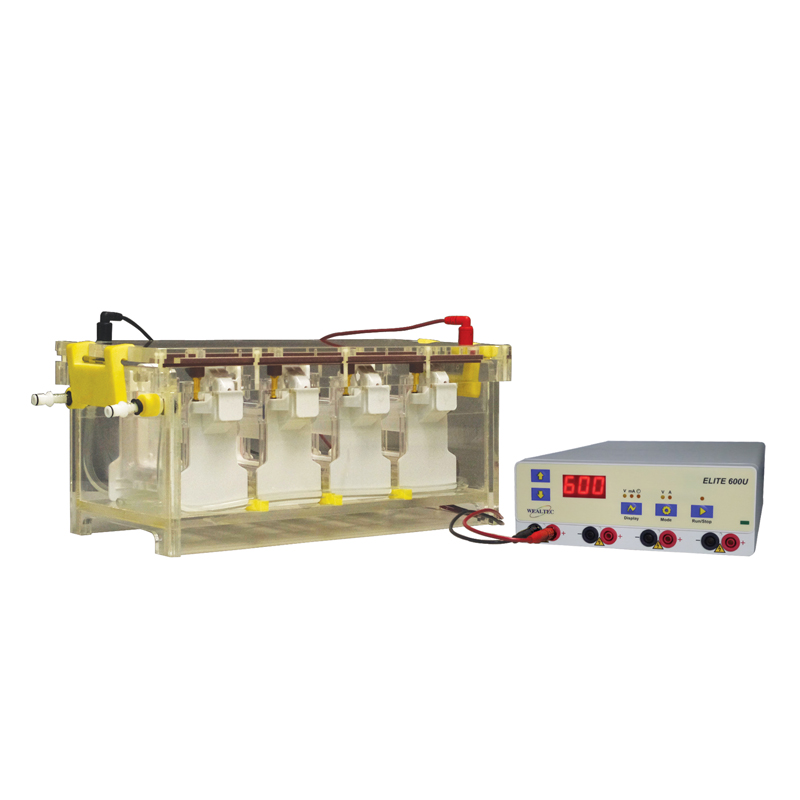

Multi-cell is designed for high throughput protein gel electrophoresis. This system equipped with cooling manifold to connect with optional water chiller for cooling and maintain the buffer at constant temperature. Eight pieces protein gel can run simultaneously, and ELITE 600U power supply also serves perfect combination and excellent result to the Multi-cell.
ELITE 600U
ELITE 600U is a stackable, compact and high voltage power supply that mainly used for high throughput electrophoresis. Three digits seven segments LED readout voltage, current and time. Error messages include no load detection, sudden load change, over voltage protection, automatic recovery after power failure, short circuit, and current differential alarm for easy troubleshooting. Easy control Constant V/A with automatic crossover, adjustable voltage and current in minimum 1V and 1mA increment provide flexible condition and parameter settings. Four sets of output terminals with adjustable V/A while running vertical or horizontal electrophoresis, Western blotting, DGGE/CDGE/TTGE/TDGS. ELITE 600U serves perfect combination and excellent result to the Multi-Cell.
- Specification
- Features
- Ordering
- Download
Multi-Cell
| Gel size |
100 x 80mm (W x H) |
| Glass plate size |
100 x 130mm (W x H) |
| Gel thickness |
1.0mm / 0.5mm / 0.75mm |
| Number of gels |
8 gels simultaneously |
| Electrode module w/ platinum wire |
4* |
| Gel casting module |
8* |
| Buffer volume |
3 to 5.5 L |
| Cable |
High efficiency black & red cable |
| Physical dimensions |
432 x 226 x 195mm (W x D x H) |
| Weight |
8kg |
| Recommended Power Supply |
ELITE 600U |
| Certification |
CE |
| Optional |
| Cooling |
External water chiller |
The spec is subject to change without prior notice.
Patent No.:M277920 / ZL 2005 2 0009035.8 / Nr. 20 2005 005 050.4 / 2005-002015 / US 7,544,279 B2 |
|
ELITE 600U
| Voltage automatic |
Yes |
| Current automatic |
Yes |
| Output Terminals |
4 sets |
| Current adjust steps |
3-750mA in 1 mA |
| Voltage in 1 volt steps |
5-600 V |
| Output power |
150 W max. |
| Operating Temperature |
0-40℃ |
| Timer |
0-999 mins |
| Display |
3 digit 7 seg LED |
| Touch Pad |
Yes |
| Alarm |
Yes |
| Input Power |
100-120V , 50-60 Hz |
| Physical dimensions |
240 x 320 x 73mm (W x D x H) |
| Weight |
2kg |
| Certification |
CE |
*The spec is subject to change without prior notice.
**ELITE 200/300/600/Mini ELITE power supply comply with EN 61010-1
|
|
Features
High throughput routine laboratory
Proteomics research field and protein screening purpose
Easy to clean buffer tank without contamination
Low cost and high efficiency
2-Dimensions gel electrophoresis available
Trustable and accurate power source in the market
Small footprint, stackable, outshell use fire resistance material
Up to four sets output
Membrane key pad for functional setting.
Three digit seven segment LED read out voltage,current and time
Complete error messages for trouble shooting
Ordering Information
| Catalog Number |
Description |
| 1037001 |
Multi-Cell with ELITE 600U power supply complete system, 100~240V, 0.5 mm 10 teeth comb set. |
Download
| Flyer |
| Multi-Cell |
 |
|
|
 |
Accessories |
|
|
|
|
| |
 |
| Multi-Cell electrode module |
|
Multi-Cell electrode module, 1 set |
|
|
|
|
| |
 |
| Multi-Cell Casting Module |
|
Multi-Cell Casting Module, 1 set |
|
|
|
|
| |
 |
| Multi-Cell glass plate set |
|
Multi-Cell glass plate set, set includes thick glass plate/ 5pcs, U-shape glass plate/ 5pcs
|
|
|
|
|
| |
 |
| Multi-Cell spacers 0.5mm |
|
0.5mm Multi-Cell spacer 15x100mm, 2pcs
|
|
|
|
|
| |
 |
| Multi-Cell spacers 0.75mm |
|
0.75mm Multi-Cell spacer 15x100mm, 2pcs
|
|
|
|
|
| |
 |
| Multi-Cell spacers 1.0mm |
|
1.0mm Multi-Cell spacer 15x100mm, 2pcs
|
|
|
|
|
| |
 |
| Comb 0.5mm 10-teeth (Multi-Cell) |
|
0.5mm 10-teeth comb for Multi-Cell, 1pcs
|
|
|
|
|
| |
 |
| Comb 0.75mm 10-teeth (Multi-Cell) |
|
0.75mm 10-teeth comb for Multi-Cell, 1pcs
|
|
|
|
|
| |
 |
| Comb 1.0mm 10-teeth |
|
1.0mm 10-teeth comb, 1pcs
|
|
|
|
|
| |
 |
| Comb 0.5mm 15-teeth (Multi-Cell) |
|
0.5mm 15-teeth comb for Multi-Cell, 1pcs
|
|
|
|
|
| |
 |
| Comb 0.75mm 15-teeth (Multi-Cell) |
|
0.75mm 15-teeth comb for Multi-Cell, 1pcs
|
|
|
|
|
| |
 |
| Comb 1.0mm 15-teeth (Multi-Cell) |
|
1.0mm 15-teeth comb for Multi-Cell, 1pcs
|
|
|
|
|
| |
 |
| Thick glass plate |
|
Thick glass plate 100x130mm, 5pcs
|
|
|
|
|
| |
 |
| U-shape glass plate |
|
U-shape glass plate 100x130mm, 5pcs
|
|
|
|
|
|
|
|
|
