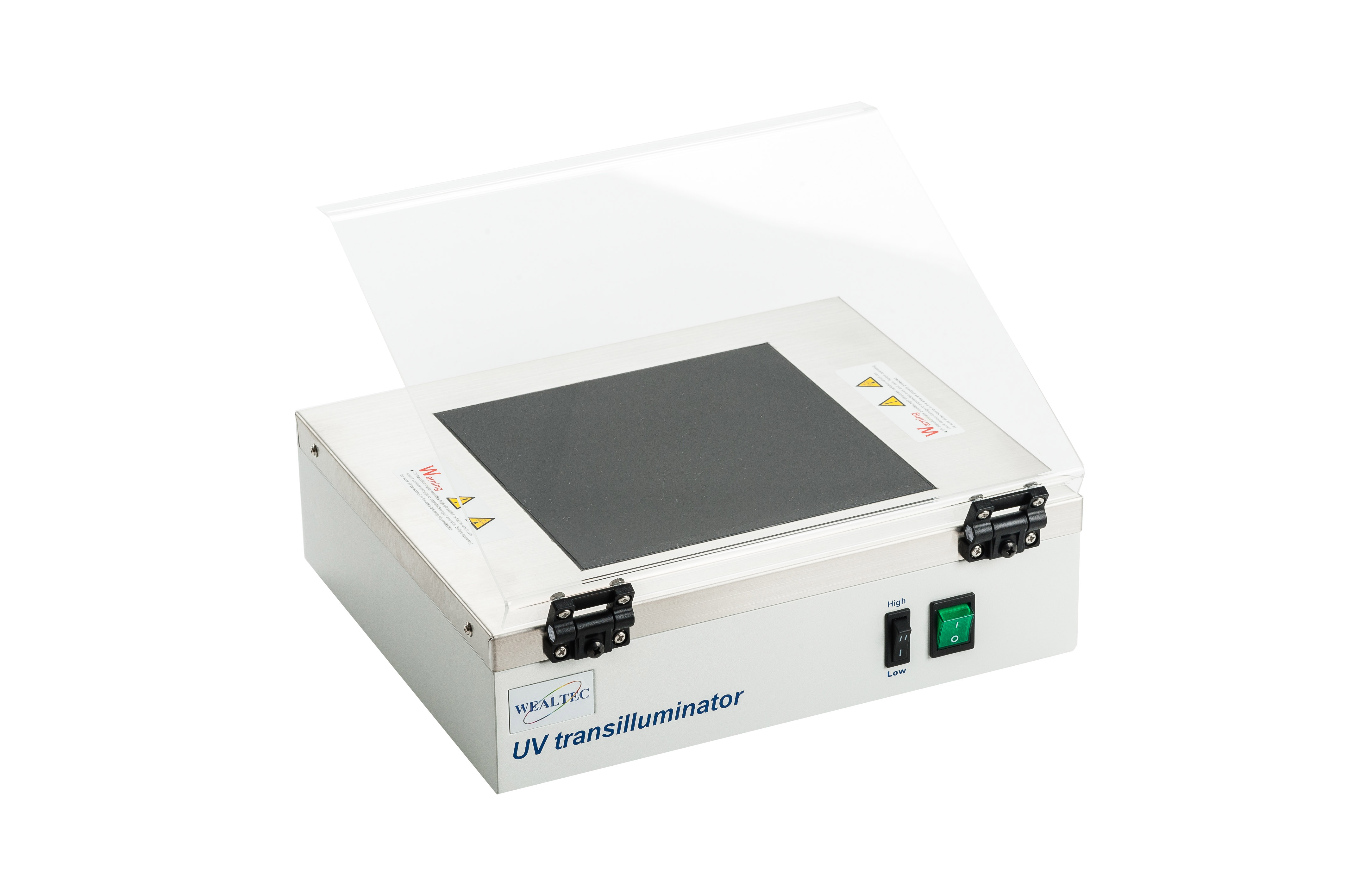

Compact benchtop MD series UV Transilluminator, comprises with 6 X 8W UV tube, 200mm X 200mm or 250mm X 250mm low background filter, UV radiation blocking cover, high / low intensity switch, anti-corrosive stainless steel working surface. UV radiation blocking cover as standard, IR cut Off Filter to prevent IR energy penetrate target agarose/acrylamide gel visualization stained by EtBr, SYBR® Green, SYBR® Gold, SYPRO® Ruby, SYPRO® Orange. In addition, it can be applied in forensic science, polymer curing.
MD series for 302nm, HD series for 365nm, SD series for 254nm all equipped with electronics booster without starter, detail please see below ordering information
- Specification
- Features
- Ordering
- Download
| Filter size |
200 x 200 mm |
| Filter type |
Low background filter |
| Wavelength |
254nm / 302nm / 365nm |
| Light source |
8 Watt X 6 tubes, 10W and 15W tubes as option |
| Switch |
High / Low intensity switchable |
| Cover frame material |
316 Stainless steel |
| Protection cover |
Yes |
| Power |
120 / 230 / 100V, 50 / 60Hz |
| Physical dimensions (mm) |
320 x 280 x 90 (W x D x H) |
| Weight |
7.4kg |
| Certification |
CE |
| The spec is subject to change without prior notice. |
|
Features
Low cost
High / Low intensity selectable
UV radiation blocking cover
Low background
Long life time UV tubes
Anti corrosive working surface
Ordering Information
| Catalog Number |
Description |
| 1142002 |
MD-20 UV transilluminator, 100-240V / 50 - 60Hz, 302nm, 20 x 20cm filter size |
| 1142008 |
HD-20 UV transilluminator, 100-240V / 50 - 60Hz, 365nm, 20 x 20cm filter size |
| 1142026 |
MD-20D Dual wavelength UV transilluminator, 100-240V, 50-60Hz, 302/365nm, 20 x 20cm filter size |
| 1142016 |
SD-20 UV-transilluminator, 100-240V, 50-60Hz, 254nm, 20 x 20cm filter size |
Download
| Flyer |
| UV Transilluminator |
 |
| Technical Bulletin |
| Low Background Black Glass of UV Transilluminator |
|
|
|
 |
