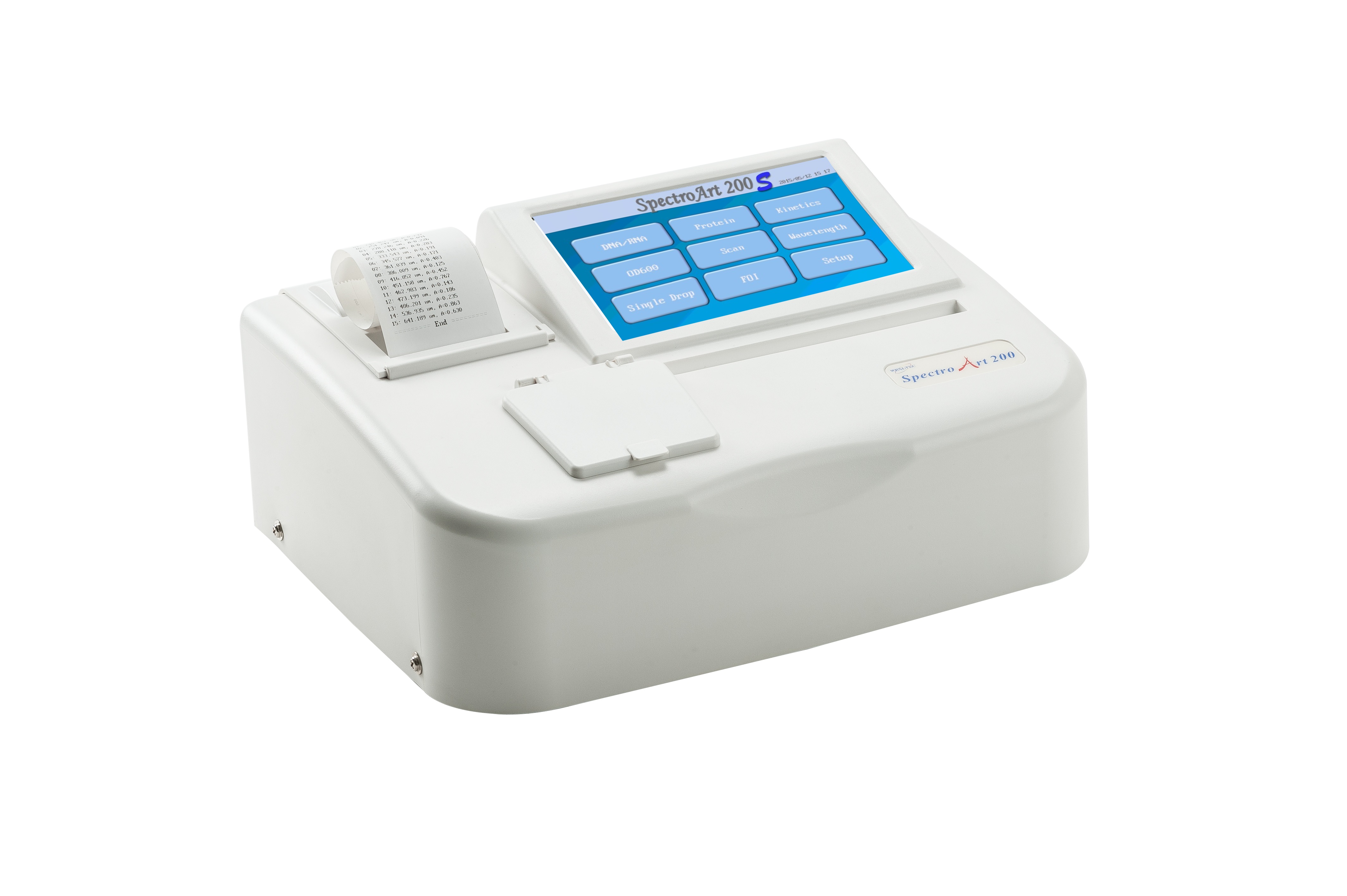

SpectroArt 200/200S Spectrophotometer equipped with high intensity xenon flash lamp provides fast and stable spectral analysis. Functions include protein and nucleic acid quantification, bacterial growth, kinetic assay, specific wavelength and full spectrum scanning, FOI function, and Single Drop, applicable with all kinds of bioscience experiments. Each analysis category with auto conversion function provides operator to change and readout data in desirable Abs, T%, 260 / 280 ratio, or concentration. All data and spectrums can be printed out through built-in thermal printer. The wavelength accuracy of compact optical module was calibrated by Holmium oxide for longest stability. The single drop analysis mode is included in SpectroArt 200S for 0.7-5 μl ultra-micro sample volume, DNA concentration ranging from 25 to 4,250ng/μl can be detected by single drop mode. Moreover, labeling density of fluorescent labeled nucleotide probe can be determined through FOI function. Standard cuvette, semi-micro, micro, disposable cuvettes can be also adaptable for general applications. Optional computer control software is available.
- Specification
- Features
- Ordering
- Download
| Model |
SpectroArt 200 |
SpectroArt 200S |
| Light source |
Flash Xenon Lamp |
| Detector |
2048-elements linear silicon CCD array |
| Display |
7" Touch screen TFT LCD |
| Wavelength range |
200 – 800nm |
| Wavelength accuracy |
± 1.5 from 200 – 800nm |
| Abs/Photometric accuracy |
± 0.01nm@1 & 0.5 AU |
| Abs/Photometric repeatability |
± 0.01nm@1 AU; ± 0.004nm@0.5 AU |
| Stray light |
< 0.05% @ 600nm ; < 0.1% @ 435nm |
| Photometric noise |
0.003 @ 0AU, 550nm |
| Spectral bandwidth |
< 2nm |
| Absorbance range |
0 – 3.5AU |
| Data collection speed |
10 to 200 ms |
| Light path |
10mm |
| Z-dimension |
8.5mm |
| Multiple wavelength |
10 Max. |
| Sample test repetition |
10 Max. |
| Analytic data storage |
999 Max. |
| Kinetic analysis range |
60 – 6000 sec |
| Communication port |
RS 232 x 1, USB 2.0 x 1 |
| Single beam |
YES |
| Applicable cuvette types |
Standard / Semi-micro / Micro-volume |
| Pre-set single drop analysis |
Option |
Standard |
| DNA / RNA / Protein / Wavelength |
Standard |
| Kinetics / OD 600 / Scan / FOI |
Standard |
| PC software |
Option |
| Printer |
Built-in |
| dsDNA recommended working range |
10-100μg/ml |
| Physical dimensions |
320 x 255 x 150 mm(W x D x H) |
| Weight |
4.5kg |
| Power Input |
100 - 240V AC, 50 - 60Hz Max. 50W |
| Certification |
CE |
The spec is subject to change without prior notice.
|
|
Features
Specific bio application functionality, DNA / RNA, Protein, OD 600, Kinetics, Wavelength, Scan, FOI
Direct dialogue operation interface no additional training necessary
Pre-set single drop analysis from 0.7 - 5μl sample volume
High intensity Xenon flash lamp covers 200 to 800nm
Optical resolution less than 1nm
Real-time result storage
PC software available
Ordering Information
| Catalog Number |
Description |
| 1210000 |
SpectroArt 200 Bio-spectrophotometer system, 100 - 240V, 50 - 60Hz |
| 1210021 |
SpectroArt 200S Bio-spectrophotometer system complete with 1211005 for single drop analysis, 100 - 240V, 50 - 60Hz |
|
|
 |
