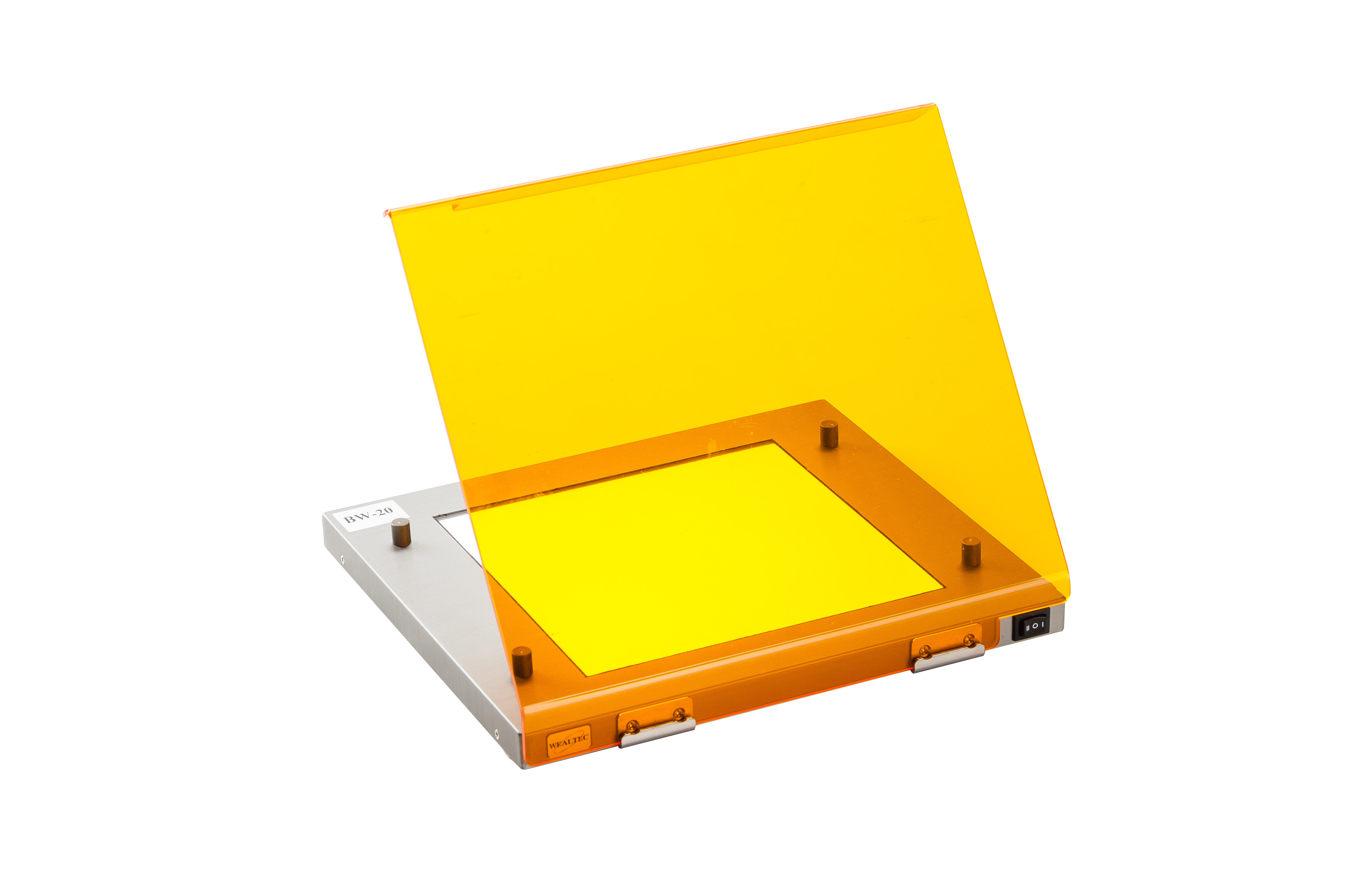

BW-20, Blue and white light transilluminator adaptable for all commercial brand gel documentation image system with applying power adaptor. Equipped with selectable blue and white LED light provides most uniform trans light emission. It’s applicable for Bio-Safe applications with various bio-safe stains.
- Specification
- Features
- Ordering
- Download
| Filter size (mm) |
200 x 200 |
| Filter type |
Light guide filter |
| Wavelength (nm) |
Visible / 465 ± 5 |
| Light source |
32xWhite LEDs + 32xBlue LEDs |
| Switch |
Blue / White light switchable |
| Cover frame material |
Aluminum |
| Protection cover |
Yes |
| Power |
100 - 240V, 50 - 60Hz |
| Physical dimensions (mm) |
300 x 280 x 40 (W x D x H) |
| Weight (kg) |
1.2 |
| Certification |
CE |
| The spec is subject to change without prior notice. |
|
Features
Compatible for all brand Gel Documentation
White & Blue light transparent technology
Compact and high efficiency system
Superior uniformity at working zone
Applicable for Bio-Safe application
High intensity long life LED device
Small footprint and light weight
Ordering Information
| Catalog Number |
Description |
| 1146021 |
BW-20 stand alone B&W light transilluminator 20 x 20cm with power adaptor and orange protection cover, 100 - 240V, 50 - 60Hz |
| 1146023 |
High intensity blue light transilluminator 20 x 20cm with power adaptor and orange protection cover, 100 - 240V, 50 - 60Hz |
| 1146025 |
High intensity white light transilluminator 20 x 20cm with power adaptor, 100 - 240V, 50 - 60Hz |
Download
| Flyer |
| BW-20 blue/white light transilluminator |
 |
|
|
 |
